Wide Body Wing Dock.
A fully customised wing docking system engineered around the aircraft fleet, hangar environment and maintenance requirements.

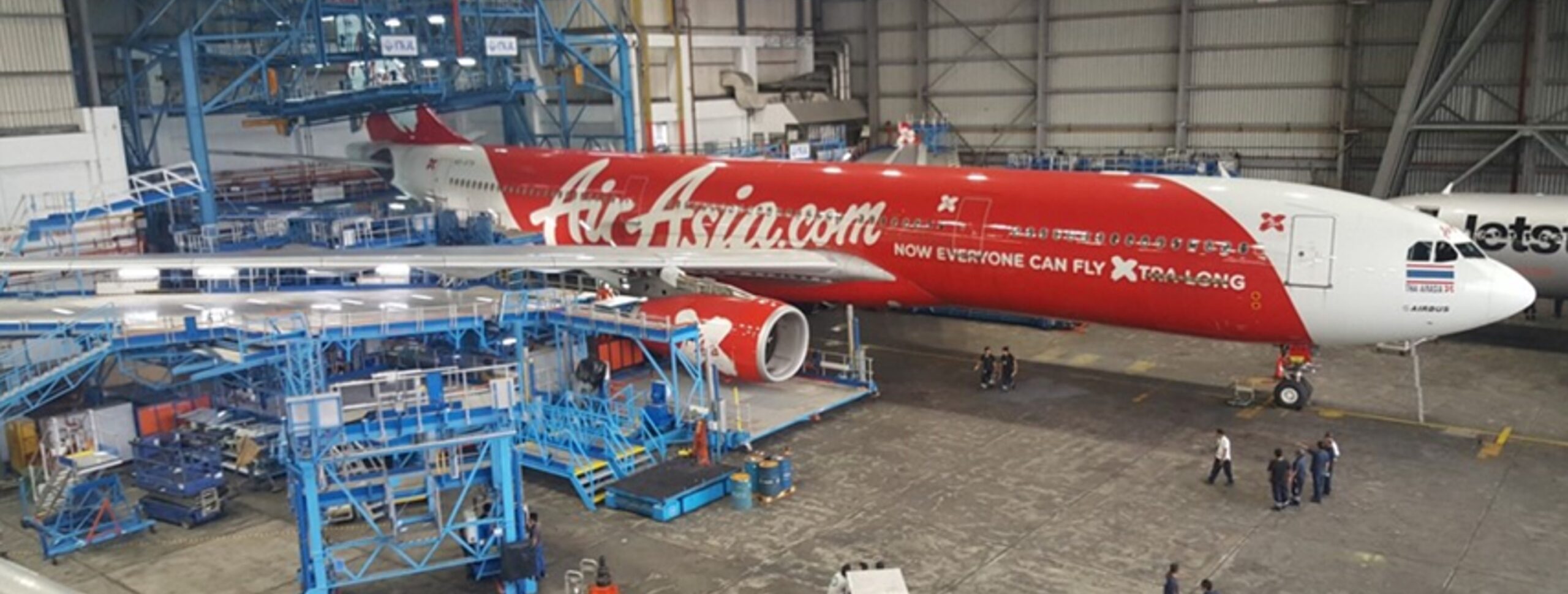

NIJL Wide Body Wing Docks are developed as project-specific access systems for heavy maintenance operations, providing safe and efficient working access across the wing and surrounding aircraft areas.
Each dock is engineered around the customer’s aircraft types, maintenance programme, hangar layout and preferred working methods. Platform heights, floor geometry, access routes, handrails and supporting systems can all be configured to create the most practical working environment around the aircraft.
Depending on the application, the system can incorporate fixed or height-adjustable platforms, flat, stepped or sloped working floors, and adjustable floor sections that follow the changing profile of the wing and fuselage.
From individual wing platforms to fully integrated multi-section docking systems, each solution is developed to provide the required access while making efficient use of hangar space and supporting repeatable heavy maintenance operations.
Classification.
Aircraft families / models11 assigned+
Markets2 assigned+
Maintenance areas1 assigned+
Aircraft types4 assigned+
Manufacturers4 assigned+
Product ranges3 assigned+
Wide Body Wing Dock
Fully customised wing docking system engineered around widebody aircraft fleets, hangar layouts and heavy maintenance requirements.
| Aircraft compatibility | Widebody aircraft fleets |
|---|---|
| Configuration | Project-specific design developed around aircraft type, hangar layout and maintenance requirements |
| Working height | Fixed-height or height-adjustable configurations available |
| Platform layout | Flat, stepped or sloped working platforms configured to suit aircraft geometry |
| Access area | Wing and surrounding heavy maintenance areas |
| Floor interface | Fixed or adjustable floor sections configured for close aircraft access |
| Railing system | Fixed or adjustable guarding systems developed around the aircraft interface |
| Capacity | Configured to suit personnel, tooling, equipment and maintenance activities |
| Construction | Steel and aluminium structure with high slip-resistance working surfaces |
| Utilities | Integrated lighting, power, compressed air and service connections available |
| Operating environment | Indoor hangar use |
Configuration options
- Fixed-height or height-adjustable platforms
- Flat, stepped or sloped floor arrangements
- Adjustable floor sections for close aircraft access
- Alternative access stairs and platform layouts
- Fixed or adjustable railing systems
- Integrated lighting and utility packages
- Individual platforms or complete multi-section docking systems
Safety and protection
- High slip-resistance working and access surfaces
- Aircraft-facing protection at interface areas
- Guarding configured around the working environment
- Stable platform design for repeatable heavy maintenance operations
