CH-47 Chinook Wrap-Around Maintenance Platforms.
A complete modular wrap-around maintenance system engineered specifically for inspection and heavy maintenance of the CH-47 Chinook.

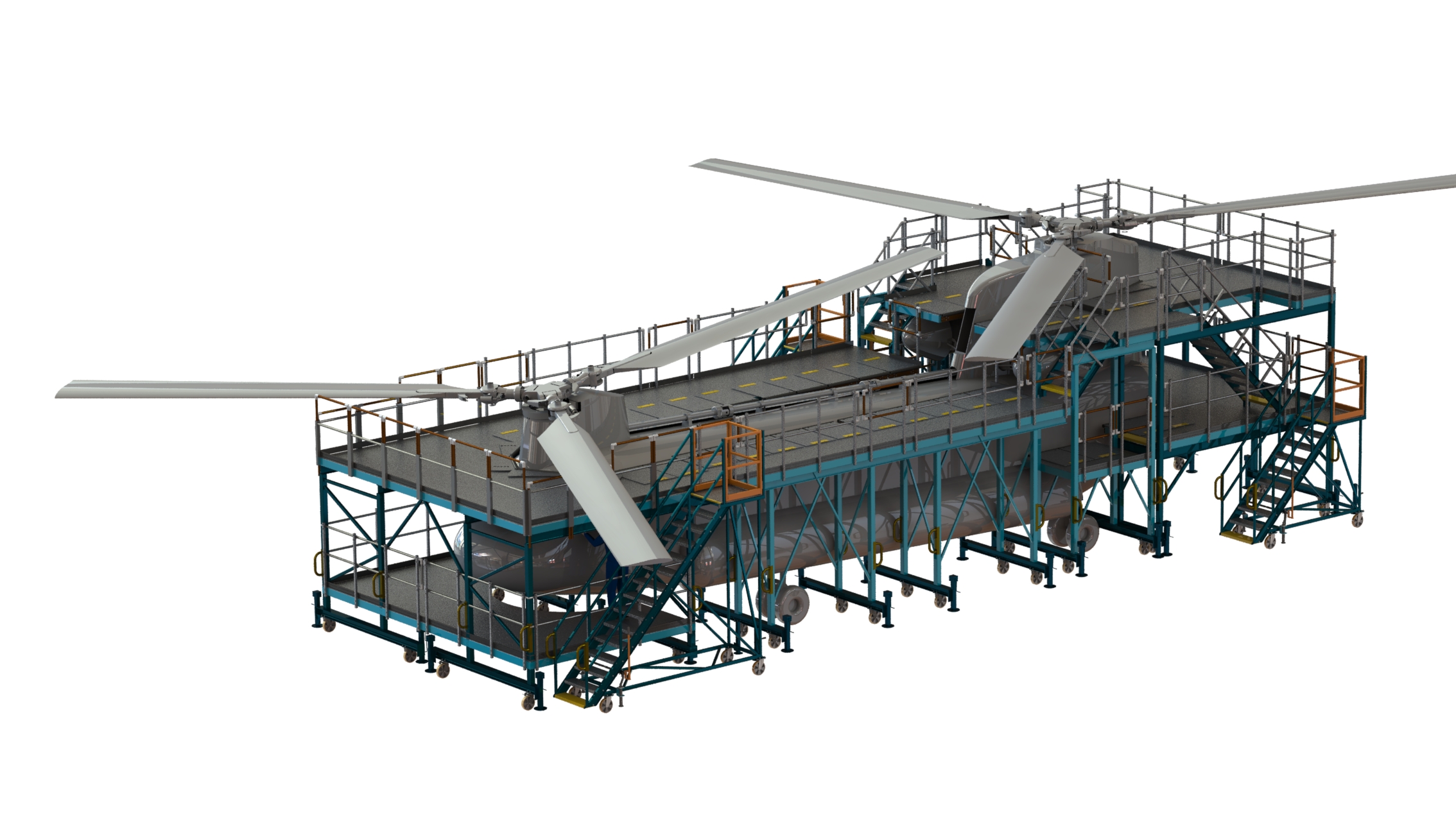

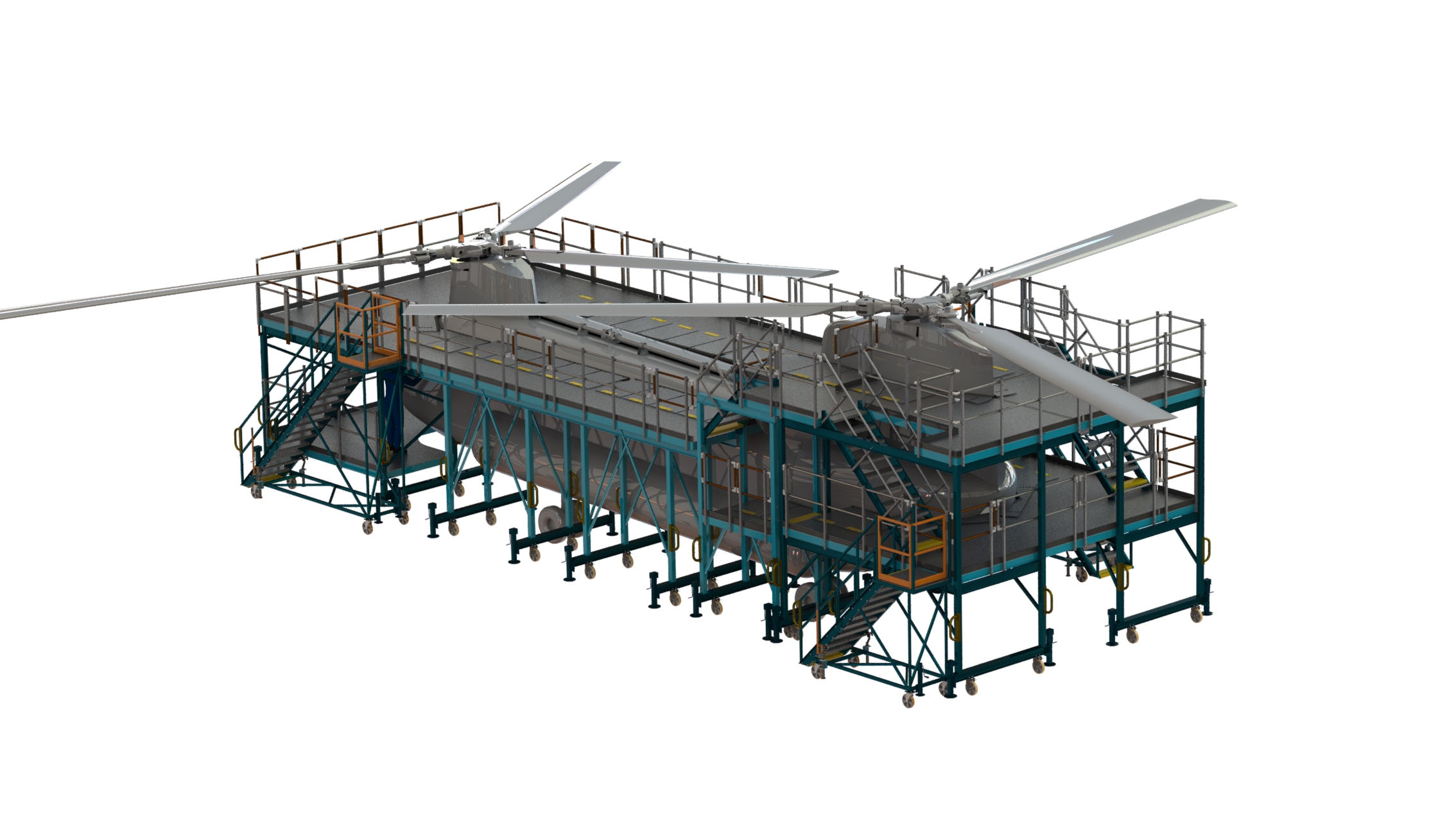

The NIJL CH-47 Chinook Modular Platform System provides comprehensive working access around the aircraft through a coordinated arrangement of left- and right-hand maintenance platforms.
The system is divided into dedicated nose, forward fuselage, aft fuselage, engine and tail sections, creating full wrap-around access for inspection and heavy maintenance activities.
A key advantage of the modular design is its flexibility. Each platform section can form part of the complete wrap-around system or be used independently with a mobile fixed-height access stair, allowing the working arrangement to be adapted to the maintenance task.
Removable and plug-in railing sections provide dedicated access points for the mobile stairs, while flexible railing arrangements maintain fall protection and allow clearance around the Chinook rotor blades.
The system is designed to maximise usable working area while keeping the overall footprint efficient. Swivel castors with directional locking allow individual platforms to be repositioned when required, and aircraft-facing rubber protection helps safeguard the helicopter skin during maintenance operations.
Classification.
Aircraft families / models1 assigned+
Markets1 assigned+
Maintenance areas4 assigned+
Aircraft types2 assigned+
Manufacturers3 assigned+
Product ranges1 assigned+
CH-47 Chinook Modular Wrap-Around Platforms
Complete modular wrap-around maintenance platform system engineered specifically for CH-47 Chinook inspection and heavy maintenance.
| Product group | 9085 |
|---|---|
| Aircraft compatibility | CH-47 Chinook |
| System configuration | 10 modular LH and RH maintenance platforms with mobile access stairs |
| Access areas | Nose, forward fuselage, aft fuselage, engine and tail / aft engine areas |
| Platform arrangement | Complete wrap-around system or individual stand-alone platform configurations |
| Working height | Fixed-height platform system Height-adjustable configuration available |
| Platform access | Mobile fixed-height stairs with removable railing access points |
| Railing system | Removable, plug-in and flexible railing sections configured for aircraft access and rotor blade clearance |
| Flooring | Marine plywood flooring Optional aluminium chequered plate |
| Load capacity | 200 kg/m² |
| Operational footprint | Approx. 18,600 × 7,900 mm |
| Mobility | Swivel castor wheels with directional locking |
| Aircraft protection | Rubber padding at aircraft-facing interface areas |
| Operating environment | Aircraft maintenance hangar operations |
Modular breakdown
- P1 LH / RH – Nose section
- P2 LH / RH – Forward fuselage section
- P3 LH / RH – Aft fuselage section
- P4 LH / RH – Engine section
- P5 LH / RH – Tail section / top of aft engine
- 2 × 15T fixed-height access stairs
- 2 × 10T fixed-height access stairs
Configuration options
- Complete wrap-around maintenance system
- Individual stand-alone platform use
- Fixed-height or height-adjustable platform configurations
- Marine plywood or aluminium chequered plate flooring
- Removable and plug-in railing arrangements
- Flexible railing configuration for rotor blade clearance
Safety and protection
- Removable and plug-in railings provide protected platform access
- Flexible railing arrangement maintains clearance around rotor blades
- Rubber padding protects helicopter skin at interface areas
- Directional locking castors support stable platform positioning
- Large continuous working areas support safe heavy maintenance activities
