F-35 Cockpit Ladder.
A lightweight, foldable access ladder engineered specifically for safe and efficient F-35 cockpit maintenance.

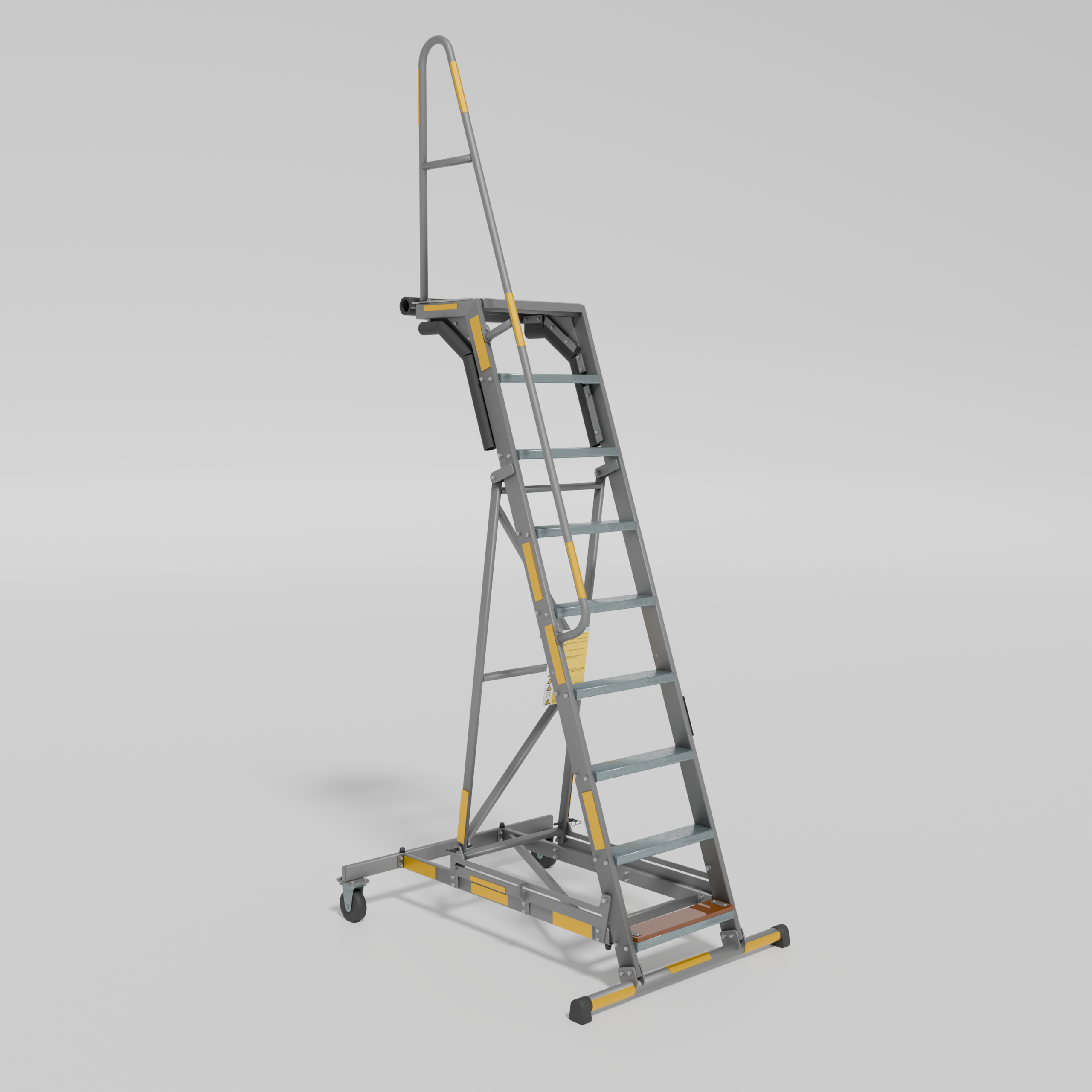

The NIJL F-35 Cockpit Ladder is purpose-designed around the geometry and access requirements of the F-35, providing technicians with safe, stable access to the cockpit during maintenance and support operations.
Manufactured from aluminium, the ladder combines a lightweight construction with the stability required for regular operational use. A dedicated working platform provides comfortable access at cockpit level, with an anti-slip aluminium surface suitable for technicians who may need to sit or kneel while carrying out maintenance tasks.

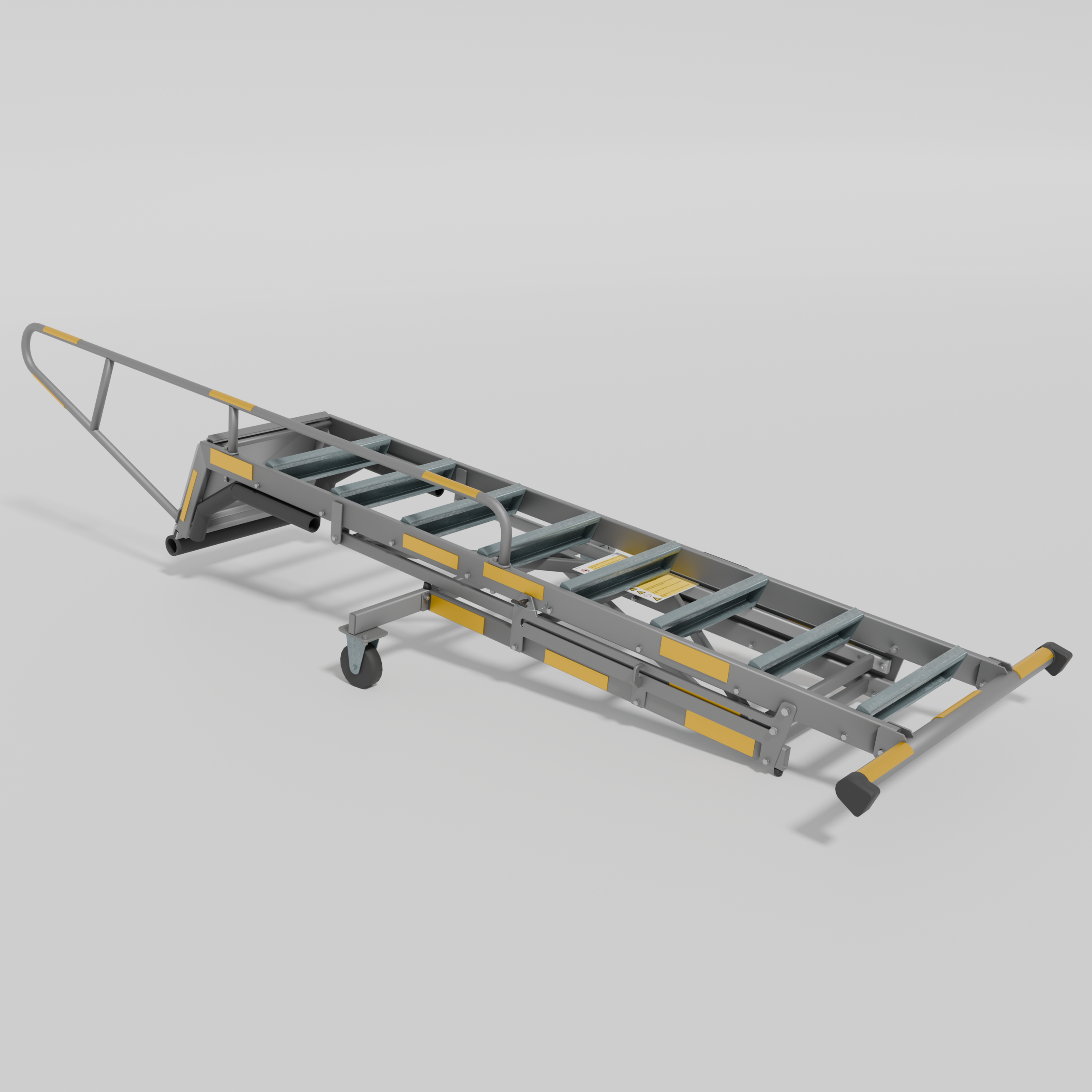

The folding frame can be changed between working and transport positions by one person without tools. Integrated wheels allow the ladder to be moved easily by hand, while fixed anti-slip feet provide a stable working position when deployed. Its compact folded configuration also makes efficient use of storage space when the ladder is not in use.
Aircraft-facing areas are protected with non-staining rubber resistant to oil and kerosene, helping protect the aircraft surface during positioning and maintenance. A removable aluminium handrail, reflective markings and integrated earthing point further support safe day-to-day operation.
The NIJL F-35 Cockpit Ladder has been assigned a NATO Stock Number, enabling standardised identification and procurement through the NATO supply system.
Classification.
Aircraft families / models1 assigned+
Markets1 assigned+
Aircraft types1 assigned+
Product ranges1 assigned+
F-35 Cockpit Ladder
Lightweight, foldable access ladder engineered specifically for safe and efficient F-35 cockpit maintenance.
| Product group | 9112 |
|---|---|
| Aircraft compatibility | F-35 |
| Access area | Cockpit |
| Configuration | Foldable and lockable cockpit access ladder with dedicated working platform |
| Stair inclination | Approx. 70° |
| Step width | 500 mm |
| Capacity | Maximum allowable load 150 kg |
| Mobility | Manually movable on integrated wheels |
| Deployment | Foldable by one person without tools |
| Construction | Aluminium frame, stair treads, platform and handrail |
| Platform flooring | Anti-slip aluminium tearplate |
| Aircraft protection | Non-staining protective rubber resistant to oil and kerosene |
| Grounding | Integrated earthing point |
| Operating environment | Indoor and outdoor use · Indoor storage recommended |
Operational features
- Compact folding configuration for transport and storage
- Locking system for working and transport positions
- Removable aluminium handrail configurable to either side of the stair
- Integrated wheels for easy manual positioning
- Fixed anti-slip feet provide stability in the working position
- Reflective contour markings improve visibility in standing and folded positions
- Dedicated platform designed for cockpit maintenance activities
Safety and protection
- FOD-conscious construction with secured components
- Non-staining aircraft protection at contact areas
- Anti-slip aluminium stair treads and platform flooring
- Raised anti-slip edge to the stair treads
- Integrated earthing point for connection to aircraft grounding equipment
- Maximum load clearly indicated on the product
