Widebody Main Landing Gear Access Stand.
A compact height-adjustable stand providing safe access to main landing gear maintenance areas on widebody aircraft.

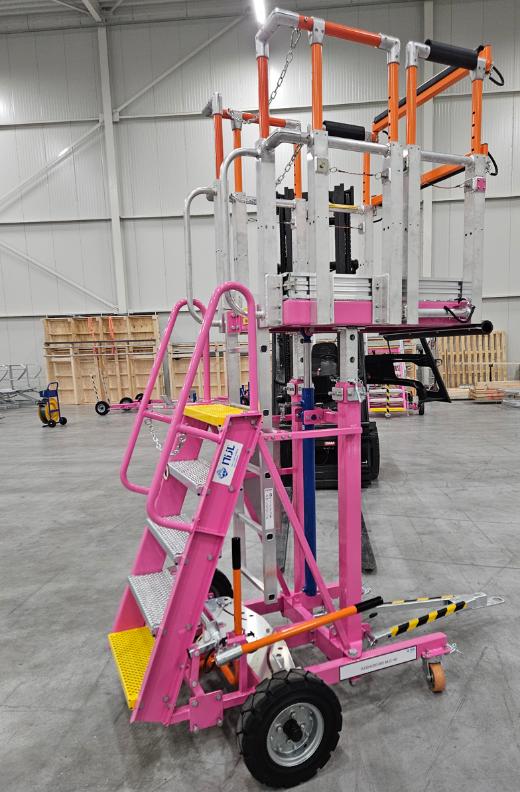

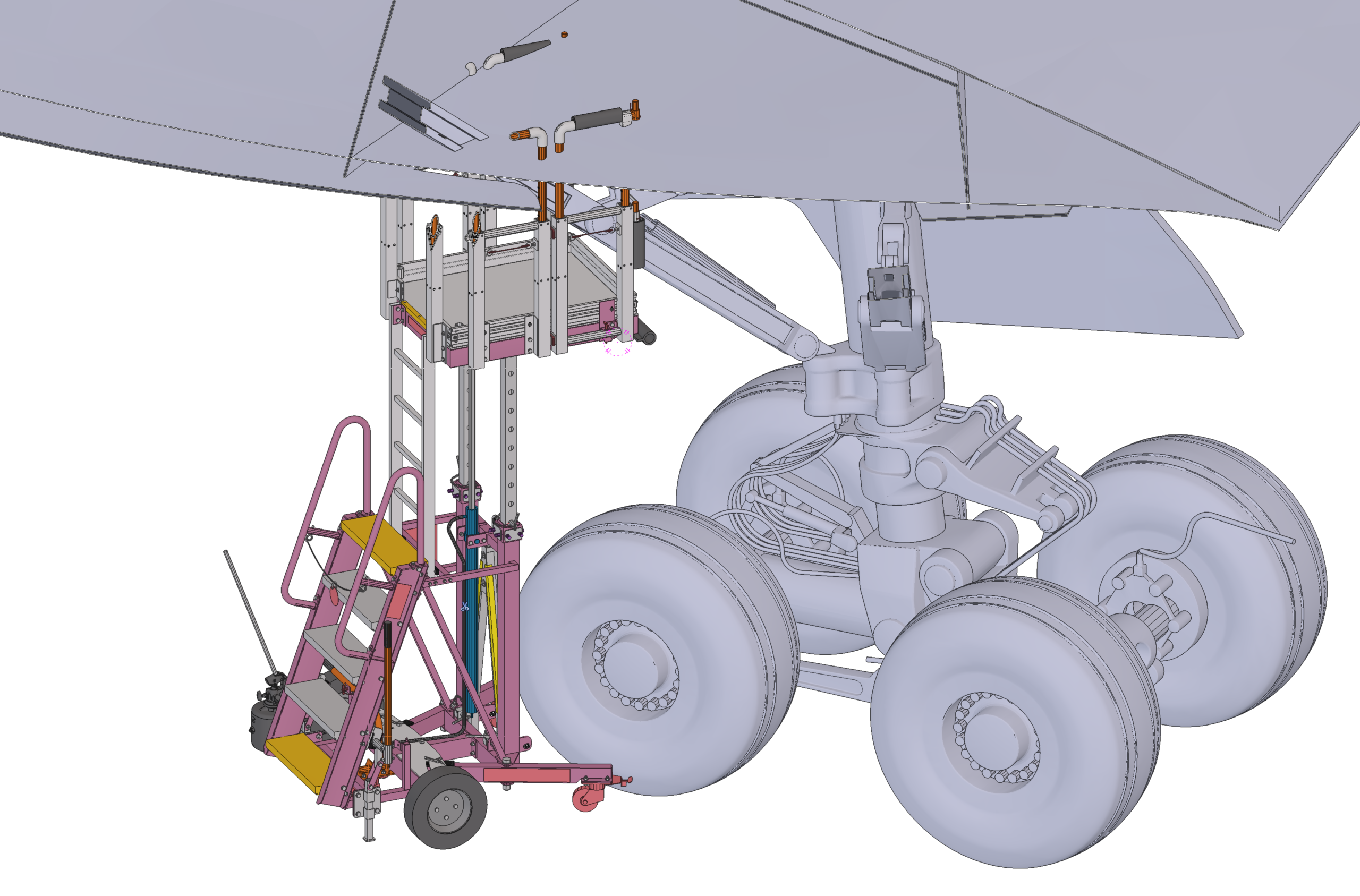

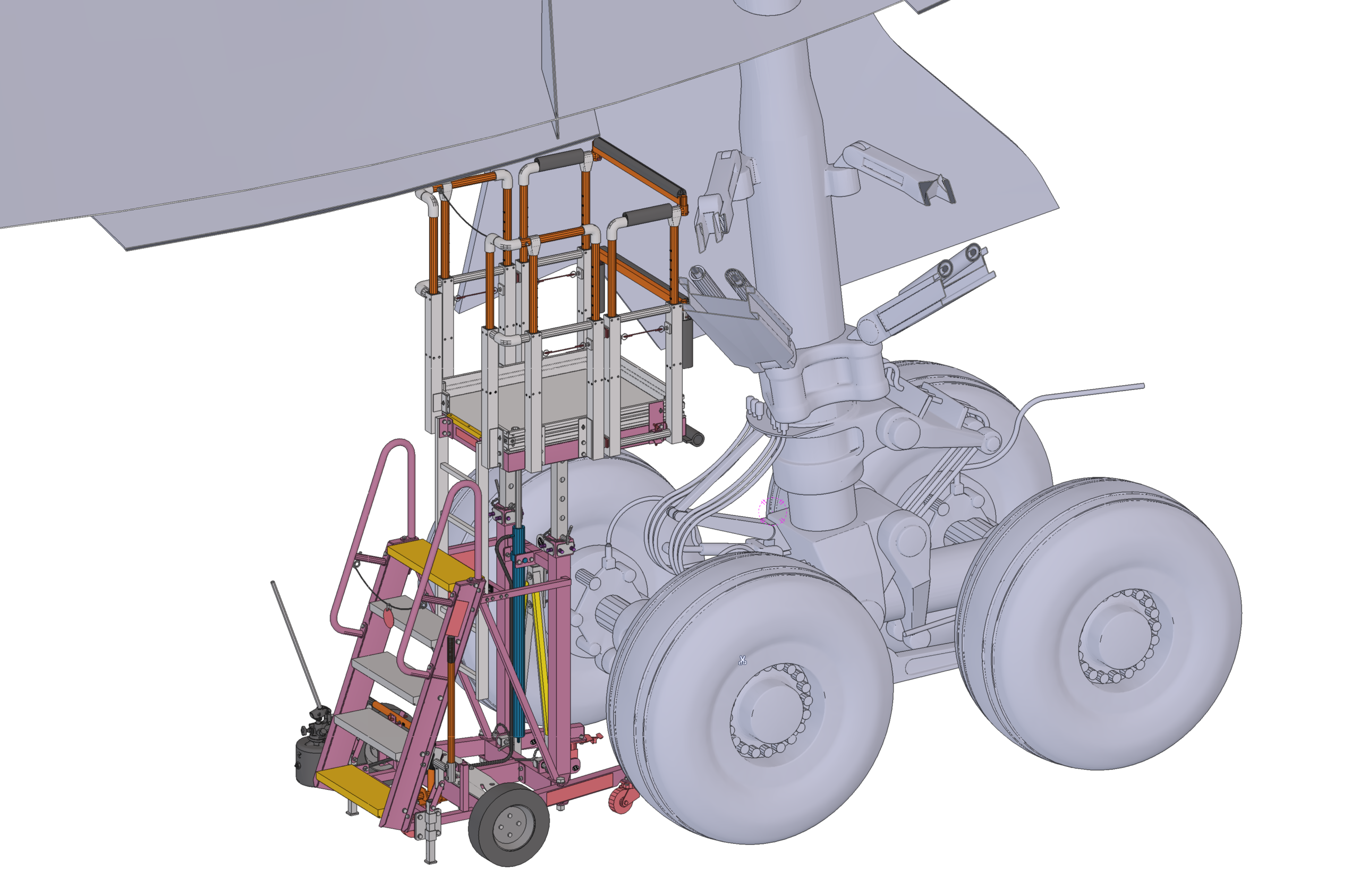

The NIJL Widebody Main Landing Gear Access Stand provides safe, flexible access around the main landing gear for inspection and maintenance.
Each stand is configured around the aircraft type or fleet mix, with manual height adjustment, a compact working platform and a highly manoeuvrable chassis suitable for positioning around the aircraft and towing between maintenance areas.
Classification.
Aircraft families / models6 assigned+
Markets1 assigned+
Maintenance areas1 assigned+
Aircraft types1 assigned+
Manufacturers2 assigned+
Product ranges1 assigned+
Widebody Main Landing Gear Access Stand
Compact height-adjustable access stand providing safe working access around the main landing gear of widebody aircraft.
| Product group | 8106 |
|---|---|
| Aircraft compatibility | Widebody aircraft |
| Configuration | Configured to suit aircraft type and main landing gear maintenance requirements |
| Access area | Main landing gear |
| Platform height | Approx. 1,645–2,545 mm on reference configuration |
| Height adjustment | Manual gear-rack height adjustment |
| Platform size | Approx. 1,000 × 800 mm on reference configuration |
| Capacity | Maximum 250 kg or 2 persons |
| Step width | 600 mm |
| Mobility | High-speed towable chassis up to 25 km/h Deployable rear swivel castors for manoeuvring near the aircraft |
| Stabilisation | Individual manual parking jacks |
| Construction | Steel and aluminium structural components |
| Platform flooring | Marine plywood flooring |
| Railing system | Vertical sliding aluminium railing |
| Aircraft protection | Black non-staining rubber protection at interface areas |
| Operating environment | Hangar and apron use |
Configuration options
- Platform height and geometry configured to suit aircraft type
- Alternative platform dimensions to suit maintenance requirements
- High-speed towing configuration
- Manoeuvring arrangement with deployable swivel castors
- Alternative railing and access configurations
Safety and protection
- Non-skid access steps
- Manual stabiliser jacks for secure positioning
- Non-staining rubber protection at aircraft interface areas
- Sliding railing system for protected working access
- Maximum load clearly defined for personnel and tools
