WiFi Access Platform.

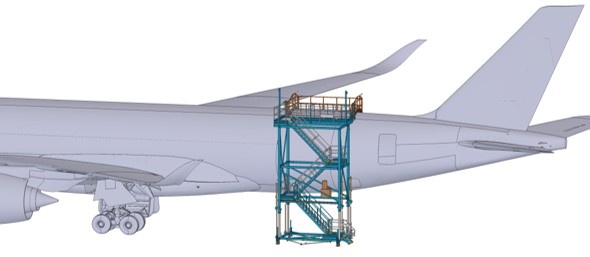

A mobile height-adjustable platform providing safe, adaptable access to the aircraft fuselage crown for WiFi antenna installation and maintenance across a wide range of widebody aircraft
A mobile, height adjustable access platform to provide aircraft engineers with a safe method to gain access to the aircraft fuselage crown area for installation and maintenance of WiFi antens such as Starlink.
The platform features a fully enclosed stairway giving access to the large top platform, with adjustable locking floor sections and a deployable handrail enclosure which completely surrounds the work area with profiled railing to ensure a precise fit to the curvature of the fuselage. Removable railing ensures the engineers are completely enclosed while they deploy the extendable floors and handrail enclosure.
Developed to provide access to a wide range of aircraft this platform can be used in most widebody fleets.
Classification.
Aircraft families / models7 assigned+
Markets1 assigned+
Maintenance areas2 assigned+
Aircraft types4 assigned+
Manufacturers2 assigned+
Product ranges1 assigned+
Widebody WiFi Access Platform
Mobile height-adjustable platform providing safe, adaptable access to the aircraft fuselage crown for WiFi antenna installation and maintenance.
| Aircraft compatibility | Mixed widebody fleets |
|---|---|
| Access area | Fuselage crown |
| Platform height | 7,400–8,800 mm |
| Height adjustment | 1,400 mm stroke Electro-hydraulic with mechanical locking |
| Top platform size | 5,000 × 1,900 mm |
| Working enclosure | Approx. 2,500 × 4,800 mm Deployable barrier system |
| Adjustable floor | Sliding floor panels with up to 500 mm extension |
| Capacity | 750 kg or 3 persons |
| Stairway | 800 mm clear width Approx. 18–45° adjustable inclination |
| Mobility | Manually movable or towable Towbar included · Maximum towing speed 3 km/h |
| Construction | Steel and aluminium structure High slip-resistance aluminium flooring |
| Operating environment | Indoor hangar use |
| Utilities | Optional utility packages available |
Safety and protection
- Deployable barrier enclosure surrounds the crown working area
- Extendable floor panels close the working gap to the aircraft
- Mechanical locking system for height adjustment
- High slip-resistance stair treads and platform flooring
